Building a new bass / melody / lead synth
Post new topic   Reply to topic Moderators: dnny, Uncle Krunkus, v-un-v
Page 1 of 3 [67 Posts]
View unread posts
View new posts in the last week
Mark the topic unread :: View previous topic :: View next topic
Goto page: 1, 2, 3 Next
Author Message
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Sat Jun 01, 2013 6:50 am    Post subject: Building a new bass / melody / lead synth
Subject description: from thoughts to eventual completion
Reply with quote  Mark this post and the followings unread

Very Happy

Hello , i'm constantly running out of space on my diy modular Smile

Posted Image, might have been reduced in size. Click Image to view fullscreen.


Over the years using the modular i have a common monosynth patch up i regularly use in my music , my idea is to build a hardwired synth using those modules from the main system and house them on a new panel & wooden box , thus freeing up space for more modules in the blue wardrobe.

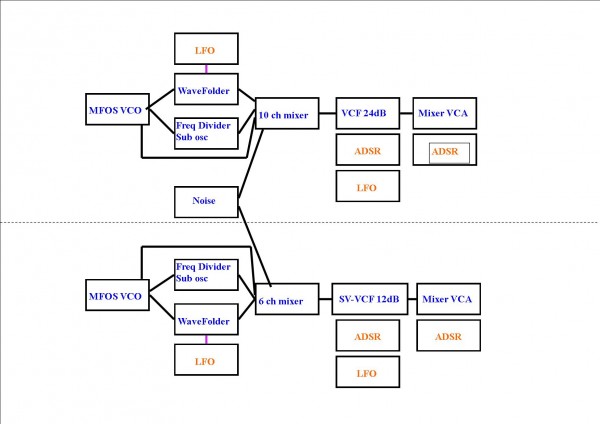

Here is a rough diagram of what i have in mind.

To be operated as .....
2 separate monosynths.
A 2 vco 24dB monosynth.
A 2 vco 12dB svvcf monosynth.
Parallel & series vcf combinations via multi-pole switches.

Once ive built the wooden box and sourced a alum sheet 600mm X 250mm , the project will gather pace Smile


Dave.


mfos 2013 synth.jpg
 Description:
 Filesize:  133.01 KB
 Viewed:  658 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

mfos 2013  synth.jpg


Back to top
View user's profile Send private message
Wobuse



Joined: Dec 07, 2011
Posts: 34
Location: Lyons,il

PostPosted: Sat Jun 01, 2013 8:24 pm    Post subject: Reply with quote  Mark this post and the followings unread

That's a kool idea Wink
You should look on eBay for a broken organ perhaps .
You could reuse its keyboards & PSU.. Rework the front panel to acomidate those modules.Maybe pick up sum retro styling ,along the way.
A random example http://www.ebay.com/itm/VINTAGE-RETRO-ZENTA-ORGAN-/221233638547?pt=UK_MusicalInstr_Keyboard_RL&hash=item33828d6c93

...and another...
http://www.ebay.com/itm/VINTAGE-WURLITZER-MODEL-101-MLM-MUSIC-LEARNING-MODULE-ELECTRIC-ORGAN-Needs-TLC-/321126944906?pt=Keyboards_MIDI&hash=item4ac4a8508a
Keep in mind ; you don't have to stack keyboard manuals to have a dual system. You could split the buss for a side by side approach . Hit one side with a colored lauqer ,then.Or cut out two octaves..move those up top & put a face plate where the octaves where. cyclops
Make a modulation wheel from a lawn mower wheel. So many possibilitys !

_________________
"It's nice 2 B important; but it's important 2 B nice"

Visit my studio ; LimeStoneLabs at: www.Facebook.com/LSlabs
Hear some of my sound track work ,on the web series ,, www.cafegangster.com/16
https://soundcloud.com/james-phillips-75
Back to top
View user's profile Send private message Visit poster's website
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Sun Jun 02, 2013 4:56 am    Post subject: Reply with quote  Mark this post and the followings unread

Smile thanks

It would be nice to do a full keyboard but i need it to fit under 2 modular cases in a corner, so it has to be a sloped front, wedge shaped sound module only.
thanks for the links tho.

Dave.
Back to top
View user's profile Send private message
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Sun Jun 02, 2013 9:34 am    Post subject: Reply with quote  Mark this post and the followings unread

Smile Been in the shed......

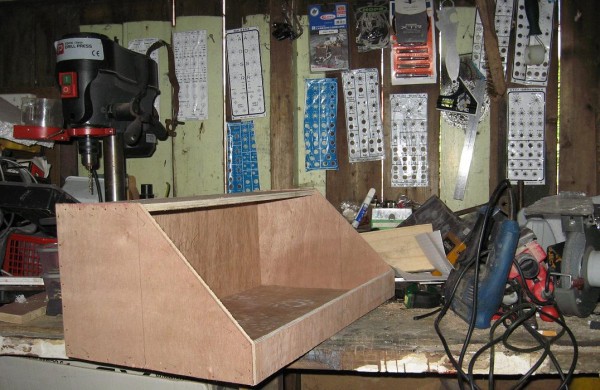

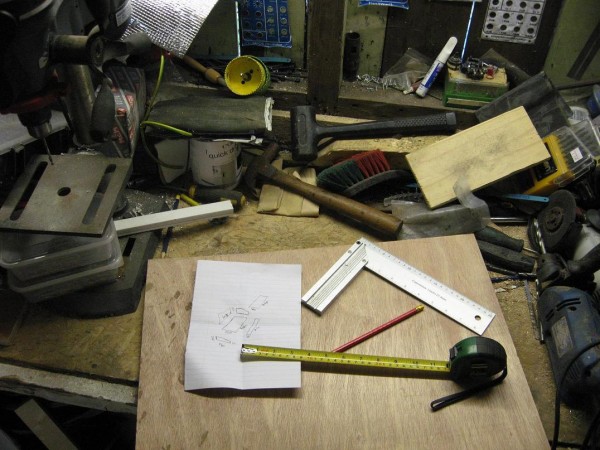

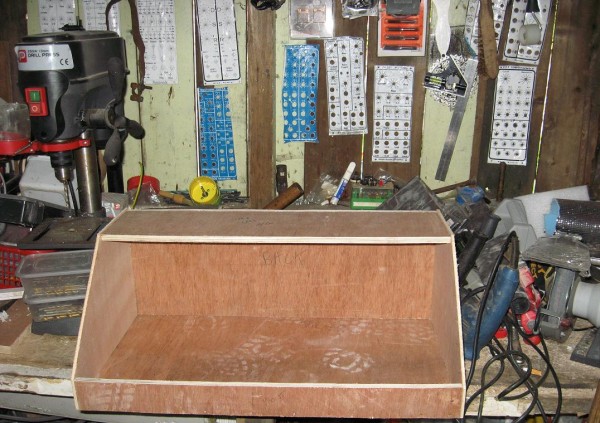

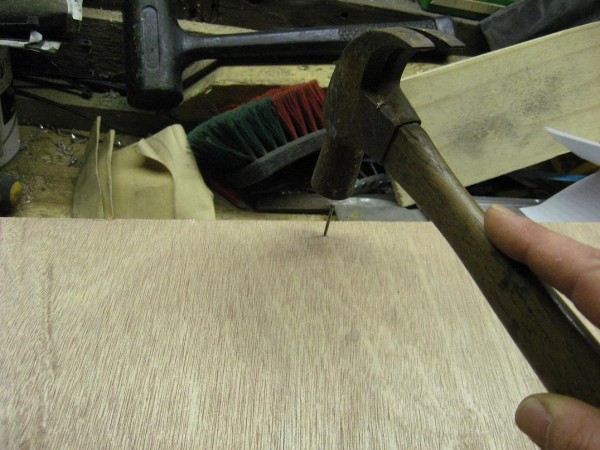

I sketched out the design of plywood box to fit in the small space under the ASM-2 synth, then into the shed armed with saw , measuring tape , set square & straight edge & pencil ,pva wood glue , bag of 1" brads / panel pins & hammer. Oh , and nice plywood off cuts from a work skip Smile.

After a couple of swearing incidents and a tea break and this is what i hacked together today.


Dave.


measure twice cut once.JPG
 Description:
 Filesize:  159.58 KB
 Viewed:  710 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

measure twice  cut once.JPG



hammer time.JPG
 Description:
 Filesize:  149.74 KB
 Viewed:  636 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

hammer time.JPG



box with 605mm x 250mm panel space.JPG
 Description:
 Filesize:  177.91 KB
 Viewed:  750 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

box with 605mm x 250mm panel space.JPG



box ready for sanding down.JPG
 Description:
 Filesize:  159.39 KB
 Viewed:  655 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

box ready for sanding down.JPG


Back to top
View user's profile Send private message
elmegil



Joined: Mar 20, 2012
Posts: 2177
Location: Chicago
Audio files: 16

PostPosted: Sun Jun 02, 2013 6:10 pm    Post subject: Reply with quote  Mark this post and the followings unread

Are you very short? I'm just trying to figure out how you got footprints inside the box!

Wink
Back to top
View user's profile Send private message
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Mon Jun 03, 2013 12:00 pm    Post subject: Reply with quote  Mark this post and the followings unread

Laughing My Nord micro mod. done a protest dance in the box when i wasn't looking Wink Smile
Back to top
View user's profile Send private message
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Sat Jul 06, 2013 10:06 am    Post subject: Reply with quote  Mark this post and the followings unread

Hullo , got the box painted with a few coats of dark grey , now ready to bond the wood fixing rails for top & bottom panel support.

Dave.


box 4 coats.JPG
 Description:
 Filesize:  147.88 KB
 Viewed:  614 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

box 4 coats.JPG


Back to top
View user's profile Send private message
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Sat Jul 06, 2013 10:26 am    Post subject: Reply with quote  Mark this post and the followings unread

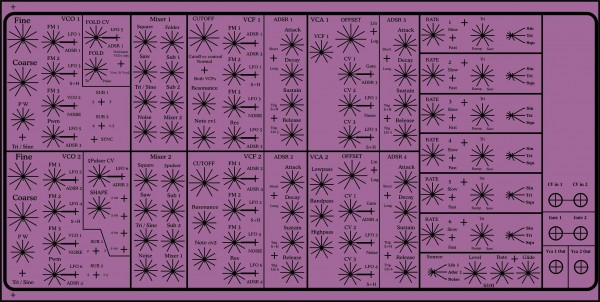

Here is my first draught of my layout for the front panel , i've got it to fit to 250mm high by 500mm wide on 3mm aluminium sheet , leaving a single module space to the right when the panel fits to the box , which is 603mm long inside.

Most of the parts of this synth will come from my main modular , so it's mainly a re- panel / re-wire job with a few extra pcbs to build in the modulation area.

To fill the space on the top right im thinking of using an multi-FX pedal and a distortion / overdrive with ken stone stompbox circuits on veroboard.

I'm going to let this layout simmer for a few weeks until i get an offcut of alum panel from a metal fabricator/engineers workshop.

i've spent a few days with the modulation sources for all the CV attenuators , making sure they are evened out over the destinations, i hope i've covered all my usual patch configurations with this layout Smile

Dave.


mfos synth w lfos July 2013 small.JPG
 Description:
 Filesize:  512.25 KB
 Viewed:  823 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

mfos synth w lfos  July 2013  small.JPG


Back to top
View user's profile Send private message
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Sat Jul 06, 2013 10:34 am    Post subject: Reply with quote  Mark this post and the followings unread

Smile

Not sure which colour of vinyl will go with the dark grey, hmmm Smile

Dave.


mfos synth w lfosJuly 2013 purple small.JPG
 Description:
 Filesize:  441.58 KB
 Viewed:  720 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

mfos synth w lfosJuly 2013  purple  small.JPG



mfos synth w lfos July 2013 orange small.JPG
 Description:
 Filesize:  545.43 KB
 Viewed:  595 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

mfos synth w lfos July 2013  orange  small.JPG


Back to top
View user's profile Send private message
PHOBoS



Joined: Jan 14, 2010
Posts: 5591
Location: Moon Base
Audio files: 705

PostPosted: Sat Jul 06, 2013 10:41 am    Post subject: Reply with quote  Mark this post and the followings unread

purple, will go nice with the color of the casket and with your blue modular. or go crazy and make it neon pink Twisted Evil
_________________
"My perf, it's full of holes!"
http://phobos.000space.com/
SoundCloud BandCamp MixCloud Stickney Synthyards Captain Collider Twitch YouTube
Back to top
View user's profile Send private message Visit poster's website AIM Address Yahoo Messenger MSN Messenger
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Sat Jul 06, 2013 10:47 am    Post subject: Reply with quote  Mark this post and the followings unread

Very Happy pink panther Smile Smile
Back to top
View user's profile Send private message
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Sat Jul 06, 2013 10:50 am    Post subject: Reply with quote  Mark this post and the followings unread

yes , i like the lilac / purple colour , but the orange is super easy to read the text , but i'll learn it real quick , looking like purple if the print shop has some Smile


Dave.
Back to top
View user's profile Send private message
PHOBoS



Joined: Jan 14, 2010
Posts: 5591
Location: Moon Base
Audio files: 705

PostPosted: Sat Jul 06, 2013 11:24 am    Post subject: Pink Panther Bass Panel Reply with quote  Mark this post and the followings unread

Skrog Productions wrote:
Very Happy pink panther Smile Smile

couldn't resist Cool


 Description:
 Filesize:  413.55 KB
 Viewed:  433 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.




_________________
"My perf, it's full of holes!"
http://phobos.000space.com/
SoundCloud BandCamp MixCloud Stickney Synthyards Captain Collider Twitch YouTube
Back to top
View user's profile Send private message Visit poster's website AIM Address Yahoo Messenger MSN Messenger
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Sat Jul 06, 2013 11:50 am    Post subject: Reply with quote  Mark this post and the followings unread

Fantastic , heh , thanks Phobos Smile Smile
Back to top
View user's profile Send private message
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Sun Jul 14, 2013 7:30 am    Post subject: Reply with quote  Mark this post and the followings unread

Hi ,

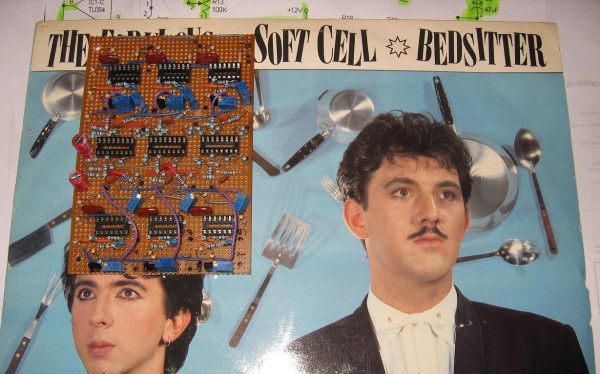

The 6 lfo's i have made on veroboard are from Ray's site under the oldies but goodies section , six of the "variable skew lfo" which outputs 3 main waves... sine / ramp - tri - saw (skew) / square.

I have made a few veroboard circuits and i now just follow the diagram and populate and isolate as i go and give it a good continuity test afterwards before the "no chip" power up test.

I have also started to the mfos micro S & H circuit which will have the lockhart wave folder & dividers on the same strip.

more in a week or so Smile


Dave.

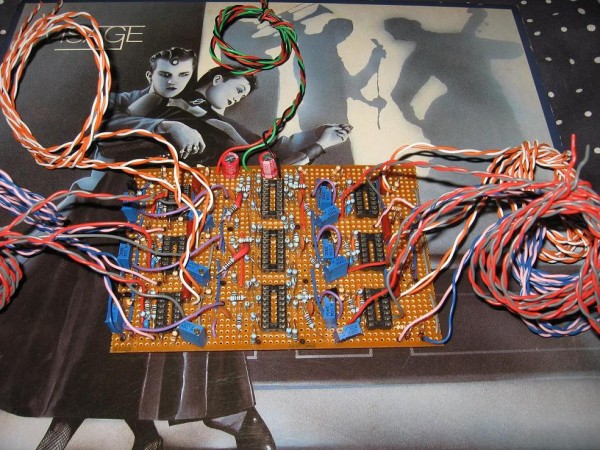

6 lfo populated.JPG
 Description:
 Filesize:  176.32 KB
 Viewed:  479 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

6 lfo populated.JPG



6 lfo wiring.JPG
 Description:
 Filesize:  188.25 KB
 Viewed:  458 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

6 lfo wiring.JPG



S & H veroboard.JPG
 Description:
 Filesize:  139.23 KB
 Viewed:  424 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

S & H  veroboard.JPG


Back to top
View user's profile Send private message
ashleym



Joined: Aug 20, 2009
Posts: 181
Location: uk

PostPosted: Mon Sep 02, 2013 12:34 pm    Post subject: Reply with quote  Mark this post and the followings unread

Sorry to be late on this.

What filters are you going to use? I like a variation from the standard LPF. A SVF or a combined LP/HP such as the MOTM CS80, Ian Fritz Threeler? I have a CGS CMOS or Wasp style filter on the drawing board. Mine will have dual-concentric pots to control two filters from one(ish) set of controls. I got these from Small Bear.

_________________
http://soundcloud.com/for-mash-get-ash
Back to top
View user's profile Send private message
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Fri Sep 06, 2013 9:56 am    Post subject: Reply with quote  Mark this post and the followings unread

Hi Ashleym

I have a mfos lowpass for vcf1 and a mfos state variable for vcf2 that are to be taken from the modular Smile .

cool , dual pots is a good idea , hope to see pics of your twin vcf your building / planning.

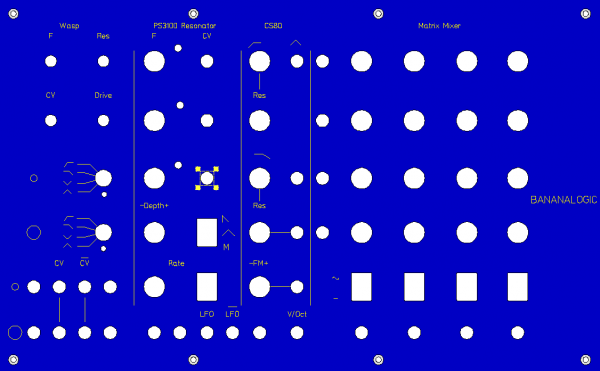

On my filter section, im going for a toggle switch to choose between normal independant vcf CV control or vcf1 CV in sum to vcf2 cv in, so they can both be sweeped from vcf1 cutoff dial. (whooooosh! sounds and more Smile )


Dave.
Back to top
View user's profile Send private message
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Fri Sep 06, 2013 10:21 am    Post subject: Reply with quote  Mark this post and the followings unread

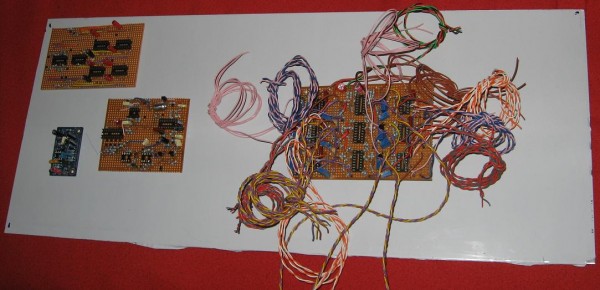

Im slowly taking my time with this build , heh , ive rearranged the panel layout a bit to fit the FX i wanted on the panel, which is now 600mm long Wink , still in the final stage of "what can i put in that space" , i was thinking vc-panner or a externally clocked melodic/random trigger generator of some sort for the 4 ADSR's. Hmmm.


Dave.


common mfos synthSept 2013 longer 600mm panel v2-51.JPG
 Description:
 Filesize:  530.11 KB
 Viewed:  480 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

common mfos synthSept 2013 longer 600mm panel v2-51.JPG



alum panel & veroboard circuits.JPG
 Description:
 Filesize:  97.2 KB
 Viewed:  513 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

alum panel & veroboard circuits.JPG


Back to top
View user's profile Send private message
PHOBoS



Joined: Jan 14, 2010
Posts: 5591
Location: Moon Base
Audio files: 705

PostPosted: Fri Sep 06, 2013 10:30 am    Post subject: Reply with quote  Mark this post and the followings unread

Skrog Productions wrote:
..,still in the final stage of "what can i put in that space" , i was thinking vc-panner or a externally clocked melodic/random trigger generator of some sort for the 4 ADSR's. Hmmm.

maybe a 5 pulser ?

_________________
"My perf, it's full of holes!"
http://phobos.000space.com/
SoundCloud BandCamp MixCloud Stickney Synthyards Captain Collider Twitch YouTube
Back to top
View user's profile Send private message Visit poster's website AIM Address Yahoo Messenger MSN Messenger
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Fri Sep 06, 2013 10:39 am    Post subject: Reply with quote  Mark this post and the followings unread

Hi Phobos , yes it's in there , hiding on vco2 and a lockhart wavefolder on vco1 , wavey Smile
Back to top
View user's profile Send private message
PHOBoS



Joined: Jan 14, 2010
Posts: 5591
Location: Moon Base
Audio files: 705

PostPosted: Fri Sep 06, 2013 11:01 am    Post subject: Reply with quote  Mark this post and the followings unread

ah, I didn't look at the panel, just at the first block diagram. good Smile
if you can get a CD4089 you could make something nice with that.
(here's an example)

_________________
"My perf, it's full of holes!"
http://phobos.000space.com/
SoundCloud BandCamp MixCloud Stickney Synthyards Captain Collider Twitch YouTube
Back to top
View user's profile Send private message Visit poster's website AIM Address Yahoo Messenger MSN Messenger
ashleym



Joined: Aug 20, 2009
Posts: 181
Location: uk

PostPosted: Sun Sep 08, 2013 12:03 pm    Post subject: Reply with quote  Mark this post and the followings unread

[/img]
This is just a screen shot of my Shaeffer design. On the left is the Wasp filter. The small circles are for the dual-concentric knobs, below switches for filter type then the banana sockets. I colour co-ordinate; blue for in and yellow for out so I dont need to add any labels. The small and larger circles are to show which part of the control is for which or the 2 filters. I try to eliminate writing and use signs and colours to define functions. I need to work on some graphic icons to add to the layout to reduce the writing even more. Something as corny as a graphic for an envelope of an envelope!!

I hope this helps. or at least explains.


Screen shot 2013-09-08 at 19.39.32.png
 Description:
 Filesize:  20.43 KB
 Viewed:  593 Time(s)
This image has been reduced to fit the page. Click on it to enlarge.

Screen shot 2013-09-08 at 19.39.32.png



_________________
http://soundcloud.com/for-mash-get-ash
Back to top
View user's profile Send private message
ashleym



Joined: Aug 20, 2009
Posts: 181
Location: uk

PostPosted: Mon Sep 09, 2013 2:46 pm    Post subject: Reply with quote  Mark this post and the followings unread

Here is the dual pot link. I got some from Small Bear, qiick and efficient.

http://www.smallbearelec.com/servlet/Detail?no=1213

_________________
http://soundcloud.com/for-mash-get-ash
Back to top
View user's profile Send private message
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Wed Sep 11, 2013 10:13 am    Post subject: Reply with quote  Mark this post and the followings unread

Hi Ash

Nice blue panel Very Happy, i like blue Wink

Mad idea.... ignore this if you have finalised the design...... a double pole switch to swap one of the filters sweep direction on the dual pot , half way turn on the dual pot would be the cross-over point of the 2 filters sweeps.


Dave.
Back to top
View user's profile Send private message
Skrog Productions



Joined: Jan 07, 2009
Posts: 1196
Location: Scottish Borders
Audio files: 155

PostPosted: Wed Sep 11, 2013 10:26 am    Post subject: Reply with quote  Mark this post and the followings unread

I was scanning over the layout and it dawned on me i'd forgotten glide/ portamento on the vco's , fixed now Smile , i've considered a few circuits for the space at the right end of the panel and i think im drawn to ken stones burst generator circuit for a bit of spicey trigger action on the ADSR's & probly through an attenuator to the vco cv in's as well.

Finish the panel design , then off to the print shop up town for a black n white drill template sticker and the finishing final 250mm x 600mm lilac / purple vinyl sticker with black text lazered on.


Dave.
Back to top
View user's profile Send private message
Display posts from previous:
Post new topic   Reply to topic Moderators: dnny, Uncle Krunkus, v-un-v
Page 1 of 3 [67 Posts]
View unread posts
View new posts in the last week
Goto page: 1, 2, 3 Next
Mark the topic unread :: View previous topic :: View next topic
 Forum index » DIY Hardware and Software » MusicFromOuterSpace.com designs by Ray Wilson
Jump to:

You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You cannot attach files in this forum
You can download files in this forum


Forum with support of Syndicator RSS
Powered by phpBB © 2001, 2005 phpBB Group
Copyright © 2003 through 2009 by electro-music.com - Conditions Of Use
